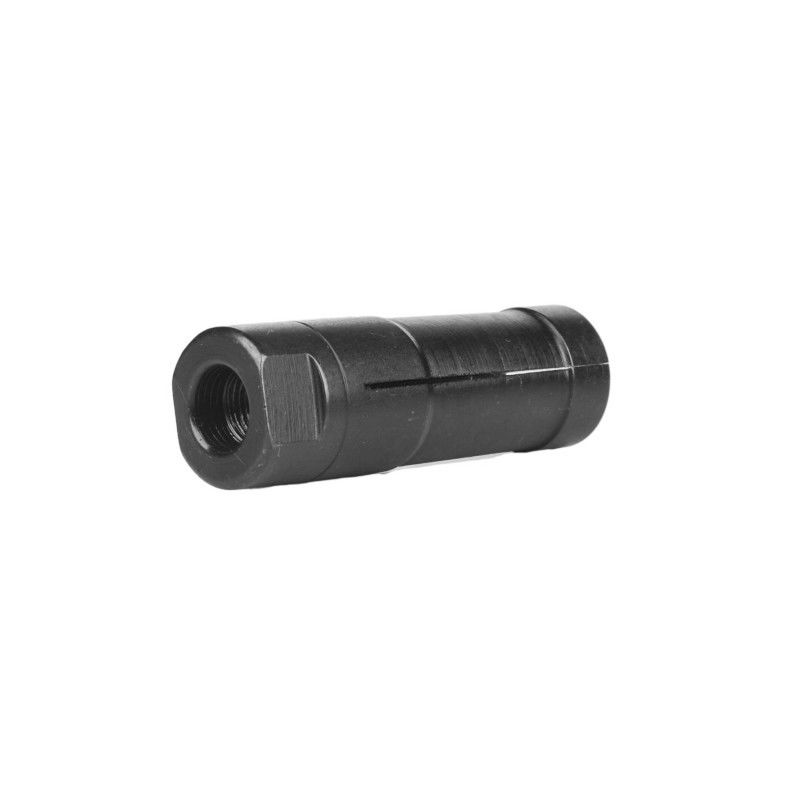

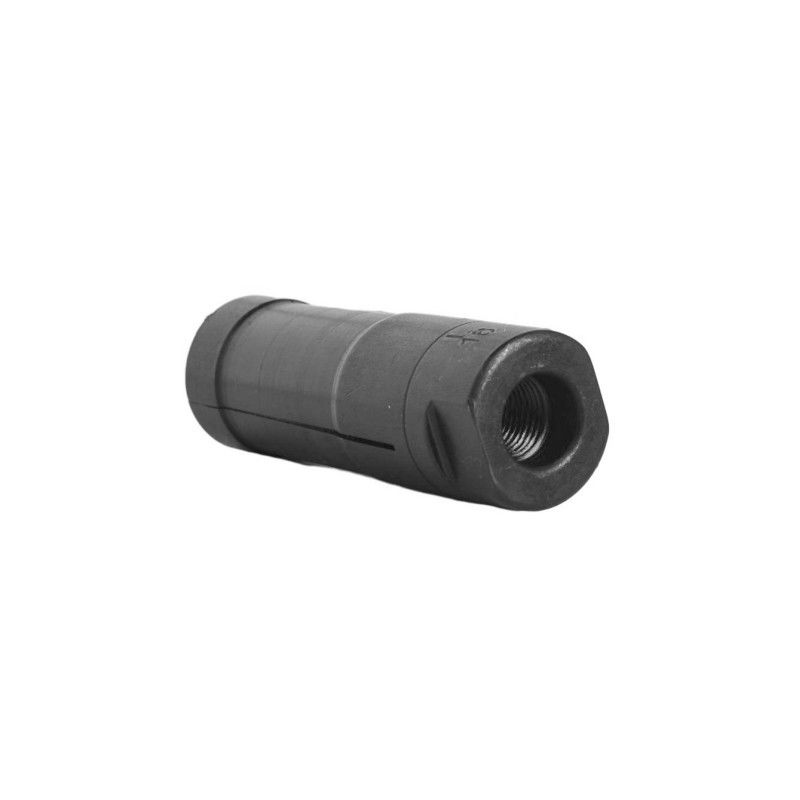

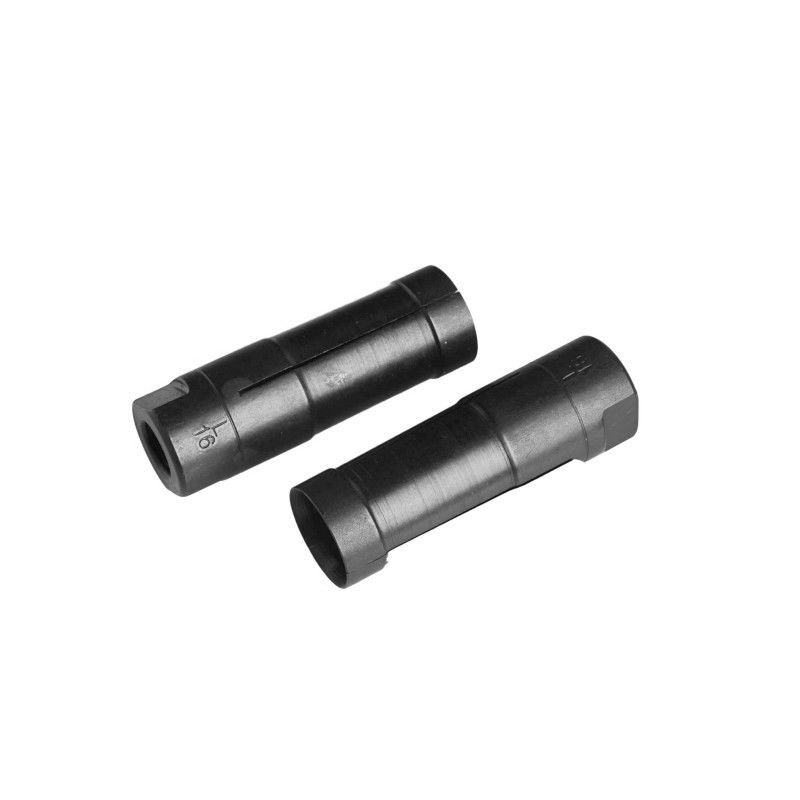

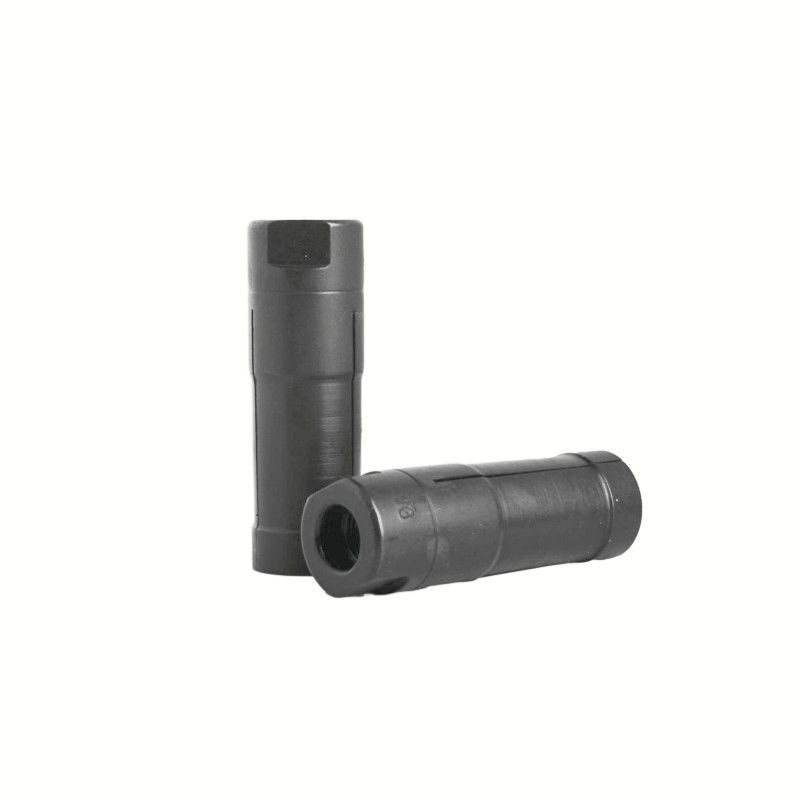

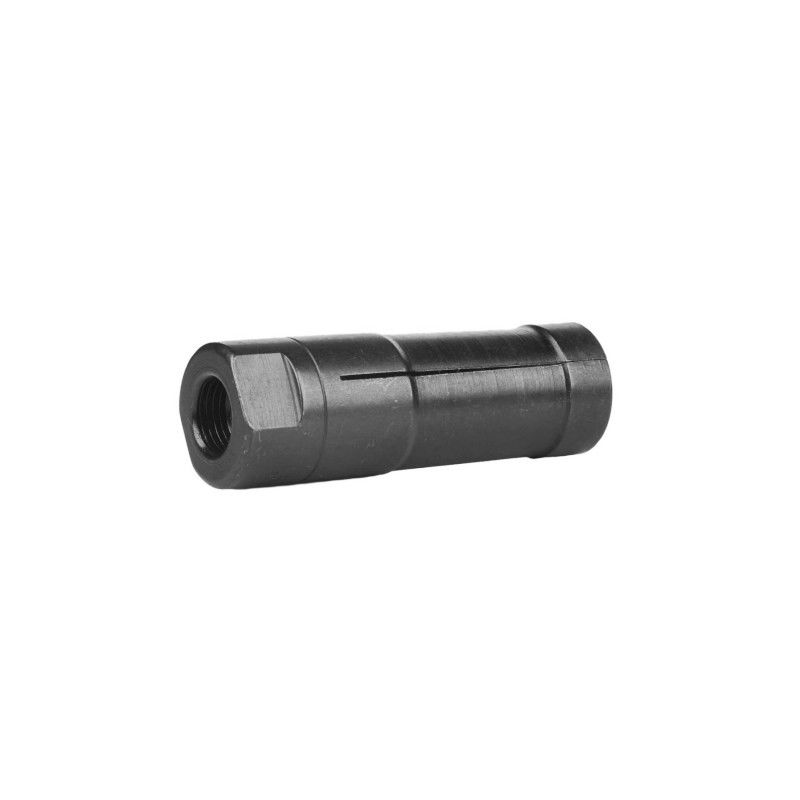

Swiss Lathe LENS Barfeed Collet M10P1.0 Clamping sleeve tiêu chuẩn cho máy quay
LNS Finger Chuck/ Barfeed Collet
| Mô hình | ID | Đang quá liều | L | Máy đo răng | Không, không. |
| 4# | 0.8~4.0mm | 5mm | 98mm | M4P0.7 | 1 |
| 4-7# | 0.8~4.0mm | 7mm | 98mm | M4P0.7 | 2 |
| 4-7# | 4.1~6.0mm | 7mm | 98mm | M4P0.7 | 2 |
| 4-7# | 2.0~5.5mm | 7mm | 98mm | M4P0.7 | 2 |
| 4# | 0.8~4.0mm | 5mm | 28mm | M4P0.7 | 3 |
| 4-7# | 1.5~6.0mm | 7mm | 28mm | M4P0.7 | 4 |
| 7# | 1.3~6.0mm | 7mm | 50mm | M4P0.7 | 5 |
| 7# | 1.3~6.5mm | 8mm | 50mm | M4P0.7 | 5 |
| 7# | 6.6~7.0mm | 9mm | 50mm | M4P0.7 | 5 |
| 8.5# | 1.5 ~ 7.8mm | 9.5mm | 45mm | M5P0.8 | 6 |
| 8.5# | 7.9 ~ 8.5mm | 10mm | 45mm | M5P0.8 | 6 |
| 8.5# | 3.0~10.5mm | 12mm | 45mm | M5P0.8 | 7 |
| 8.5# | 10.8~11.0mm | 13mm | 45mm | M5P0.8 | 8 |
| 8.5# | 11.5~12.0mm | 14mm | 45mm | M5P0.8 | 8 |
| 8.5# | 12.5 ~ 13.0mm | 15mm | 45mm | M5P0.8 | 8 |
| 8.5# | 13.5mm | 15.5mm | 45mm | M5P0.8 | 8 |
| 20# | 2.5 ~ 13.0mm | 15mm | 60mm | M9P1.0 | 9 |
| 20# | 11.5 ~ 15.1mm | 18mm | 60mm | M9P1.0 | 10 |
| 20# | 15.2~16.0mm | 19mm | 60mm | M9P1.0 | 10 |
| 20# | 16.5~18.0mm | 20mm | 60mm | M9P1.0 | 10 |
| 20# | 18.5~19.0mm | 22mm | 60mm | M9P1.0 | 11 |
| 20# | 19.5 ~ 21.0mm | 24mm | 60mm | M9P1.0 | 11 |
| 20# | 21.5 ~ 22.0mm | 25mm | 60mm | M9P1.0 | 11 |
| XT326 | 18.0~19.5mm | 22mm | 60mm | M9P1.0 | 12 |
| XT326 | 20.0~21.0mm | 23mm | 60mm | M9P1.0 | 12 |
| XT326 | 21.5 ~ 23.0mm | 26mm | 60mm | M9P1.0 | 12 |
| XT326 | 24.0~26.0mm | 28mm | 60mm | M9P1.0 | 12 |
| SN20# | 3.0~18.0mm | 20mm | 60mm | M10P1.0 | 13 |
| SN25# | 16.5 ~ 23.0mm | 25mm | 60mm | M10P1.0 | 14 |
| SN27# | 16.5 ~ 25.0mm | 27mm | 60mm | M10P1.0 | 14 |
| SN32# | 23.5 ~ 28.0mm | 32mm | 60mm | M17P1.0 | 15 |
